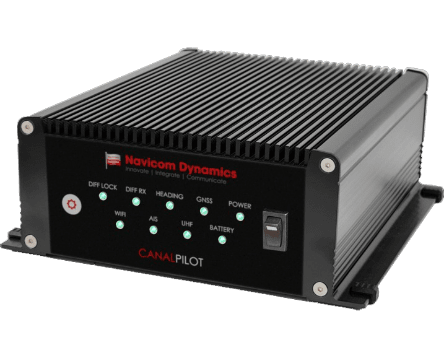

CanalPilot - Panama Canal HPF specification

Physical Specifications
Dimensions & Weight 186 x 81 x 250mm (WxHxD) | 3.5kg
Power requirements 90-240 VAC 1A / 24 VDC 15W
Battery back-up >8 hours of operation
Indicators Mode, Corrections, Heading, GNSS, Battery, WiFi, AIS, UHF, LTE

Environmental Specifications
Operating Temperature -20℃ to +74℃ (-4℉ to +165℉)
Storage Temperature -40℃ to +85℃ (-40℉ to +185℉)
Humidity 95% (non-condensing)
RoHs CanalPilot meets the directive for Restriction of Hazardous substances

Whats Included
Navicom Dynamics Canalpilot (1 no) | GNSS Antenna. (L1/L2/L5) (2nos) |
VHF Antenna (162 MHz) (1 no) | UHF Antenna (454.325 MHz) (1 no) |
Coaxial Cable 120m Antenna Mounting brackets (4 nos)

Technical Specifications
Position Source (Frequencies) L1C/A, L2C, L1OF, L2OF, E1, E1B/C, E5b, B1I, B2I
Tracked Systems GPS, QZSS, Galileo, GLONASS, BeiDou
Correctoon Source RTCMv3 (NTRIP/UHF), SBAS
Position Accuracy RTK: 0.01m +/s 1ppm CEP, SBAS: 1m
Heading HDG Accuracy: <0.02º (10m baseline)
Rate of Turn ROT Accuracy: <0.1º/min

UHF Antenna (pre-tuned to 454.325 MHz using TrimTalk 450S to receive RTCMv3 DGNSS corrections)
Frequency 410 – 480 MHz
Occupied bandwidth 6.25, 12.5, 25kHz
Modulation type/Protocol GMSK, Trimtalk 450S (+others on request)
Receiver Sensitivity -115 dBm

VHF Antenna
Frequency 162MHz
VSWR 1.5:1
